Laboratory Digital Oven

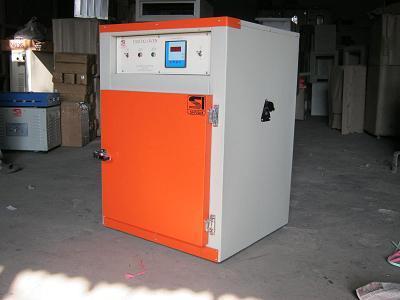

SHI-102 :   LABORATORY OVEN (UNIVERSAL MEMMERT TYPE DIGITAL MODEL)

Double walled construction. Inner chamber made of Aluminu/ S.Steel. Outer body made of mild steel is powder coated/painted. Temperature is controlled by Microprocessor based PID Controller from 50-250C .Provided  with air  circulating fan . The gap between the inner & outer chamber is filled  with high grade glass wool to avoid the thermal losses. Perforated   adjustable trays. Two pilot lamp on/off switch. To work on 220/230 V.AC.

Chamber Size (WxHxD)                                 Trays  Lts.

a. 300x300x300mm (12”x12”x12”)                2              28

b. 350x350x350mm (14”x14”x14”)                2              43

c. 450x450x450mm (18”x18”x18”)                2              90

d. 450x600x450mm (18”x24”x18”)                2              105

e. 600x600x600mm (24”x24”x24”)                2              215

f. 600x900x450mm (24”x36”x18”)  3             240

g. 600x900x600mm (24”x36”x24”)                3             325
