B.O.D Incubator

B.O.D Incubator
B.O.D Incubator
Product Code : SHI-123
Price And Quantity
  • Minimum Order Quantity
  • one Piece
  • Price Range
  • 69000.00 - 140000.00 INR
Product Description

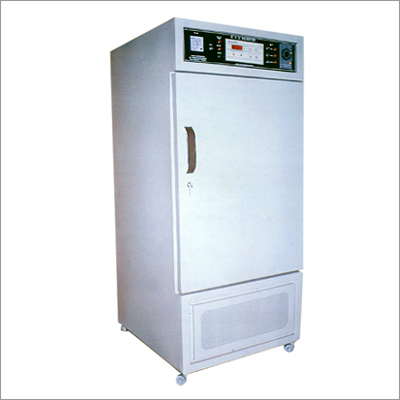

B.O.D Incubator

Backed with rich experience and knowledge, we are considered to be one of the most professional manufacturers and exporters of B.O.D Incubator. Our company is equipped with requisite machines and technology due to, which we are able to manufacture high quality incubators for our customers. Our enormous range of B.O.D Incubator is highly recognized in the market for its various features like premium quality, robust construction, compact design and great reliability. We are offering this incubator at nominal price.

B.O.D. Incubator super automate consists of a double walled chamber fitted with cooling and heating system. Inside walls are heavy gauge SS. Outside is of mild steel with intervening walls of G.I sheet or aluminum. Mounted on rugged steel section for sturdy support. Outer mild steel wall is duly finished in attractive enamel, 75mm superior quality glass wool insulation prevents heat losses. Full view perpex door duly insulated with high grade glass wool with lock and key. Perforated SS shelves for free passage of circulated air to ensure maximum possible uniformity of temperature. Mounted on caster wheels / Suitable to work on 220 V A/C 50 cycles.

Salient Features of B.O.D. Incubator

Temperature System
The automatic system controls the heating or cooling circuits according to the environmental temperature. If the temperature of the environment falls below the working temperature, the unit will automatically switch on the heating system and cut out cooling and vice versa.

Cooling Circuit
B.O.D. incubator are supplied with very high quality condenser, motor fan etc ISI marked condensing unit system equipped with a overload relay to sustain reasonable voltage fluctuations in the given range of 220V single phase, 50Hz. AC supply. They are also equipped with a time delay mechanism to prevent rapid switching on/off of the compressor on achievement of set temperature, giving it adequately the desired rest thereby prolonging its life. The cooling coils are of high grade ductile copper tubing which are placed in the path of the circulating air to ensure introduction of pre - cooled air from intermediate wall cavity in working volume for achievement of uniformity.

Temperature Range: 5 - 60 degrees

Temperature Accuracy: +/ -0.5 degrees centigrade by an electronic digital temperature controller with indicator

Front Panel: It comprises of

  • Electronic digital temperature controller cum indicator

  • Volt Meter to show the voltage

  • Line Indicator

  • Heating Indicator

  • Cooling Indicator

Optional Accessories

  • Inner Illumination with 3 nos. flourescent tubes

  • Automatic cyclic timer 0 - 24 Hrs

  • Arrangements for CO2 and air mixture nozzle

  • PID Microprocessor based controller with computer interference with software

Sizes of the Working Chamber: Made of SS 304

W x H x D


455 x 610 x 410mm

4.1 CFT

505 x 830 x 415mm

6.0 CFT

570 x 875 x 550mm

10.0 CFT

650 x 900 x 550mm

12.0 CFT

700 x 900 x 650mm

15.0 CFT

Trade Information
  • Payment Terms
  • Telegraphic Transfer (T/T), Cash Against Delivery (CAD), Cheque
  • Supply Ability
  • 30-40 Piece Per Month
  • Delivery Time
  • 2-3 Week
  • Packaging Details
  • export wothy packing at extra cost
  • Main Export Market(s)
  • Middle East, Asia
  • Certifications
  • iso 9001.2008 certified. CE certified
